Quick Change Magazines and Accessories

Quick-change magazines





Quick-change magazines are designed for users who require frequent changeovers. “No Tool” and lift-out / lift-in design assure quick and repeatable changeovers between product sizes that run on our pick and place machines.

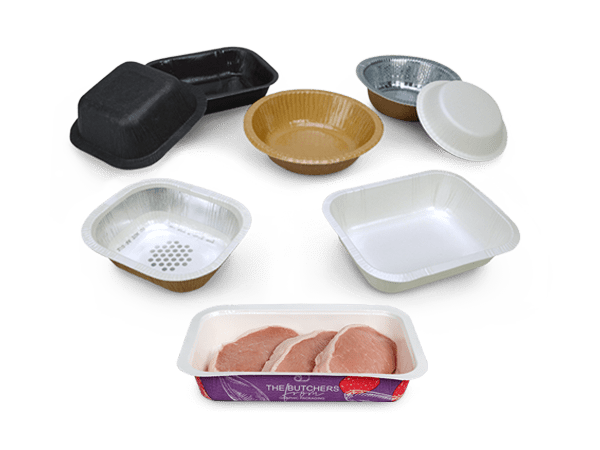

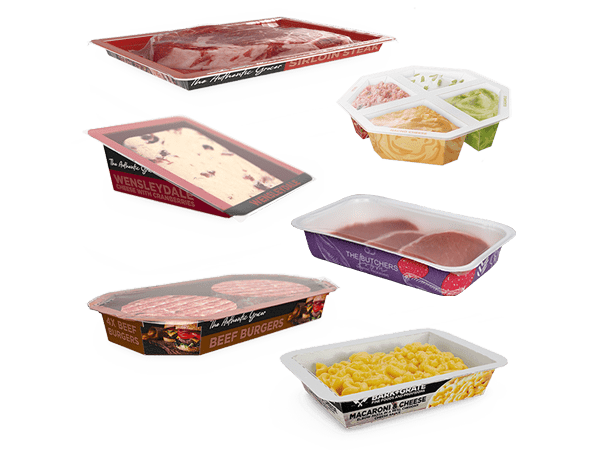

Ideal for nested products such as paper board, aluminum, and plastic trays,
bowls, tubs & lids.

Benefits

Three construction grades to match application needs

"No tool” design; loosen handles and “lift out” and “lift in” the quick change magazine

Optional “no tool” quick-change vacuum stem tooling

Specifications

Features
  • Multiple sizes and designs to suit various applications
  • Dedicated magazines allow operators to easily change over between products and eliminating clipping and fine tune adjustments each time product is run
  • Dedicated magazines enable repeatable changeovers and increased line efficiency
  • Skill simplicity. Since operators are easily able to change over between products, it frees up mechanics time
Options
  • Quick-change vacuum stem tooling allows dedicated positioning of vacuum cups for products vs. manual adjustments for vacuum stem position (width, height, and depth of vacuum cups). This results in easy and repeatable changeovers
  • Carts designed to hold and store multiple sets of quick-change magazines and vacuum stem tooling offers protection and portability to and from the line
Specifications

• Dedicated quick-change magazines have an aluminum faceplate with product clipping designed, set up and tested for specific products. Typical changeover time is 5 minutes on-line
• Universal adjustable magazines are available for similar products in width or height. They include slotted adjustments to adjust the magazine width, height, and clipping adjustments. Typical changeover and fine tuning after changeover is 20-35 minutes on-line
